Black Friday parts order

My chassis components clean up over the past few months provided me with an opportunity to make an accurate parts list. By the time that the inevitable annual sales came to town, I was ready and organised. This is my latest shipment of parts:

As well as fresh slave cylinders, the eagle eyed will notice that I have upgraded to a duel master cylinder (for safety reasons):

The part I am most excited for has to be the dropped spindles:

They will provide a 2.5" drop on the front of the car, whilst offering a smoother ride.

Not everything that I required was in stock, but it was a good haul nonetheless. Things are starting to move towards the chassis rebuild, which makes me happy!

Repair to the petrol tank support rail

I was still in two minds about the tank support rails. My initial feeling was that they were fairly crispy and that heavy pitting (from both inside and out) had thinned them.

However, upon blasting, it turned out that my assumption only turned out to be partially true. It seems that these sections were made from a slightly lighter gauge steel, which would explain why they felt relatively light. Fortunately, the rot was not too extensive, so rather than replacing with new items I figured I would save them. Afterall, the more original steel that stays in the car, the happier I feel:

Marked up the worst sections:

Cut out the bad:

made up a patch from fresh steel:

Clamped, welded and dressed:

I am not sure how I want to proceed with the forward section that curves downwards. It is actually a bit more complicated than it appears in photos because the planes sit at various angles rather than conveniently flat. I may end up using a section out of the Mexi tank rail and graft it in rather than trying to form it from scratch. I need a little thinking time, so will come back to it.

 Right, time to have a look at the other side...

Slough Swapmeet Swag

First time that I have ventured over to the annual Slough Swapmeet and it won't be the last. It was a quality event with plenty of old air-cooled wagons to inspire and motivate thyself (particularly needed in these colder darker wintery days):

From Bristol, it was only an hour down the M4 motorway to get to Newbury Racecourse on a sunny Sunday morning. Met some intresting folk and managed to bag a few items for Gretch:

6v battery cover. Although this will never be fitted to the car it is my intention one day to make a larger version that has the same original appearance, but will fit the dimensions of a 12v battery. This is low on my priority list, but I think that a period looking cover for a modern battery would be a nice touch. Eventually. Some day. Maybe.

Original Bilstein jack. Not sure this is the exact 'year correct' version for a '65 (comment below if you can enlighten me), but it appears to be around the right era. Good enough for now and it was an absolute bargain for a clean one in working order.

Heater channel vent covers. I was missing the passenger (left) side, but got them as a pair for a low-low price. They fit up into my Klassic Fab channels, but I may need to rework the top lips to enable the covers to freely slide underneath as they are in ther pretty tight:



So, a great day out was had and a few more OG parts have been ticked off of the list!

Reinforcement panel clean up

After lengthy consideration, I decided to make more work for myself by removing the petrol tank support rails. They seemed fairly solid on the top facing planes, but were wearing thin along the bottom edges (water moisture + gravity + decades of road use = crispy metal). It's always difficult to know how to proceed when things are in a grey area (ie: the condition is not too bad, but not too good either), but I think that ensuring things are made solid has to be the overriding factor. So, more spot welds were drilled out followed by careful separation of the parts:

One huge benefit to having this section split into component parts is that I could now fit the reinforcement panel into the blast cabinet, so that it could be properly cleaned up for assessment:

I identified a few areas of concern as I went along. One was a slight kink/dent on the front edge that was likely caused by the front end shunt the car had sustained in the past:

This was easily rectified with a hammer and dolly:

After a numbingly long time blasting I had things back to bare steal on the front and back:

A potentially chronic issue may exist in behind some swelling visible along the overlapping seam of the washer bottle recess. See how it bulges outwards between the factory spot welds:

I fear that can mean only one thing ...bloated rust! That will likely need addressing...

As for the tank support rails, I do have a couple of options; either replace with NOS ones (that come spot welded to the replacement quarter panels) or attempt to repair the originals. One of those options is obviously far easier, but that is not always how I choose to approach things. We shall see...

Separating the wheel well

Although I would like to strip and paint more chassis related parts (namely the front beam), I need to accept that the UK weather is now less favourable - it has turned cold and wet, which doesn't make for the good painting conditions in the garage. I shall come back to that task when the northern hemisphere is pointing back towards the sun.

So, I have pivoted my attention to something different - the crusty wheel well that I previously removed from the car in one piece along with the adjoined petrol tank rails and washer recess panel:

I gently removed the paint from the area where a row of spot welds holds the pieces together along the seam:

Carefully drilling out the spots:

To do a neat job without distorting the flanges takes some time, but means less fettling and straightening down the line. I have found that a good approach is to drill a hole 70% the size of the spots to be removed. Then come in with the rotary multi tool with a small grinding/burr attachment and careful enlarge the holes to the exact profile of the spot welds. Also, working from one end to the other ensures that the spots come apart in sequence, which makes the separation easier.

Eventually I had the old well wheel separated without any drama:

A reminder that even the most solid of cars is likely to have rust lurking in the untreated overlapping seams. Unfortunately it is inevitable unless the car has been kept in a vacuum since its date of manufacture:

I shall source a replacement panel for the wheel well section only. I will intend to clean up the rest and make an assessment. I am optimistic that only minor repairs will be required:

Any colour you like...

My poorly eye is now free from all rusty particles and recovering well.

Back to it then... all recently sandblasted parts were cleaned up as per the usual process (described in previous posts). On this occasion I shall let the photos do the talking:

After a couple of liberal coats and with the masking removed:

Rust Removal (the kind 'eye' despise)

As you may have gathered from the tabloid-worthy pun, I have once again found myself with a small piece of shrapnel embedded in my eye!

I am pretty down on myself for not following my own advice and allowing this to happen once again. Readers, please, always wear eye protection when doing metal work. Those minuscule metal filings will find a way to target in on your ballseye if you risk even the smallest task it without adequate PPE.

So, off to the eye hospital I went. The assessment swiftly concluded that I had a flake of metal just on the outside of my iris on my left eye. Anesthetic eyedrops administered, the doctor set about scrapping it out with a needle. It wasn't the vibrating one this time around, but still unpleasant nonetheless as you literally see everything:

Still have a follow up appointment tomorrow to pick out the remaining rust once the ointment helps move it all towards the surface. I appreciated the irony in the reason the doctor wrote on the appointment card 'rust removal':

Back on topic, and I shall give a little update on the endeavour that led to my unexpected trip to the emergency department...

Mounted the spring clips into the brake backing plates by lightly filing away one edge to allow them to slip under the crimped points:

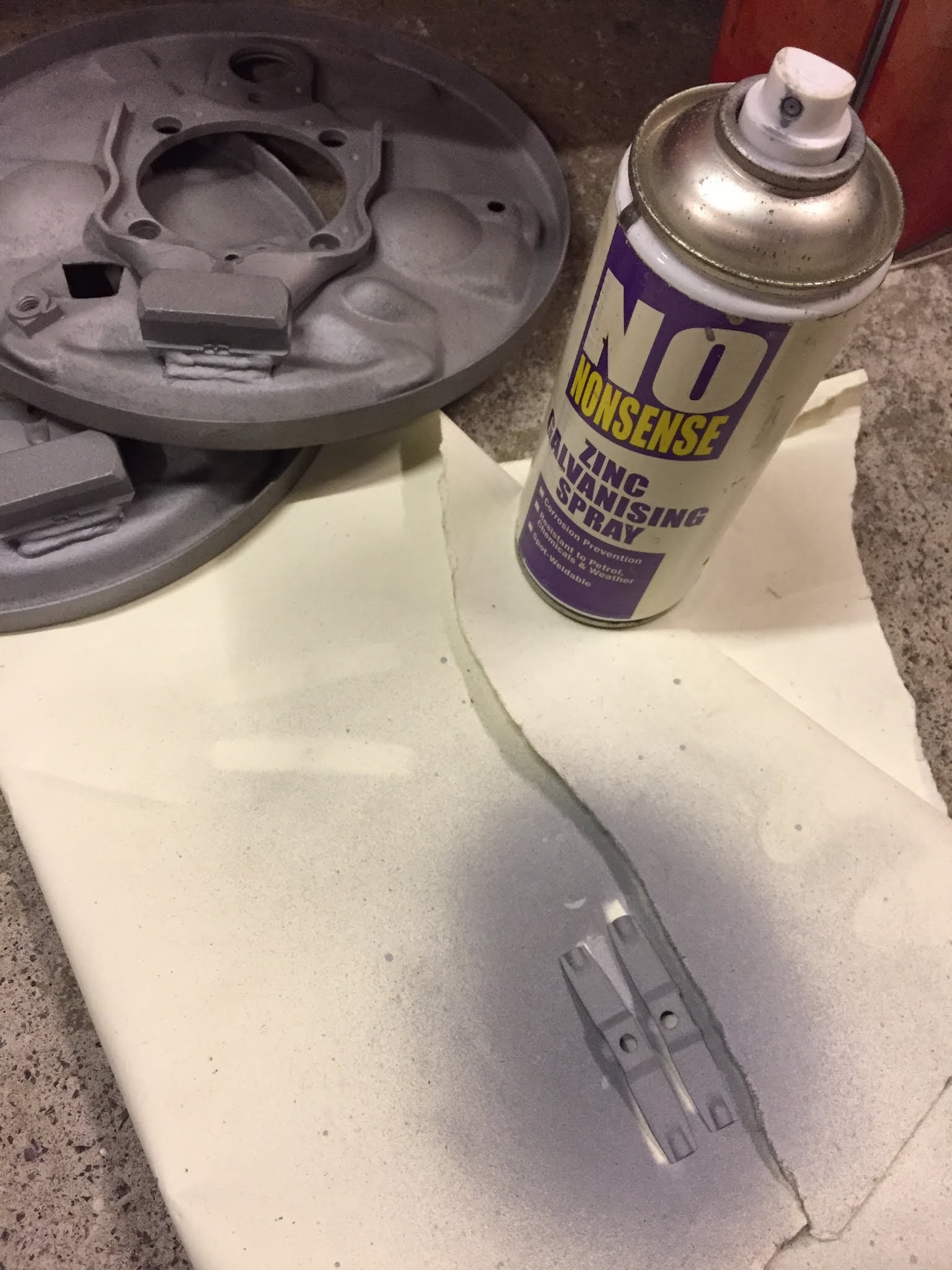

Added some 'weld through' zinc primer in between the surfaces to help mitigate against rust developing in between:

I was then able to plug weld them into position:

Using the Dremmel I dressed the welds flat (hello stupid metal filing!) and then ran them back through the shot blast cabinet to clean and key ready for paint:

Grease caps and front brake parts cleaned

Dug out the crusty front brake parts and split out into individual components ready for cleaning:

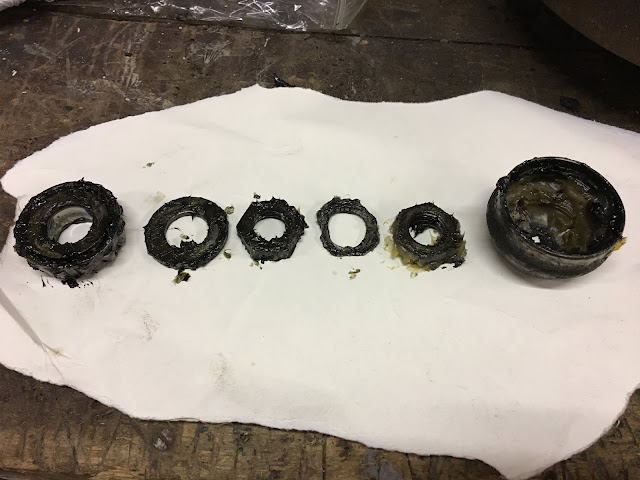

Excavated the bits embedded within the compacted gunk inside the grease caps:

Gave everything a thorough clean with the ultrasonic cleaner:

Bearing thrust washers (top) and lock washers (bottom) were not in the best state:

These will be replaced along with the brake shoe retaining pins. However, everything else was in serviceable condition.

The forgotten face of Señor Framehead

Whilst in blast-and-repaint mode (which, in part, is being driven by a race against the encrouching autumnal UK weather), I repositioned the chassis in the garage to get access to to the front of the framehead:

This section was not originally painted with the rest of the chassis due to it being obscured by the mounting point of the rotisseree. However, it did have a protective layer of grey primer slapped on years ago to prevent corrosion (although I now know that primer is awful for this application due to it being pourous).



I was initially confused by 3 extra holes that had no discernible fuction and were suspiciously asymetrical. I thought for sure that they had been drilled out sometime in the past and was about to break out the welder to plug them when I figured I should probably do some research to establish if they were factory or not:





So, for anyone reading in the future pondering the same thing; I can catagorically confirm that yes, they are vw drilled holes. Here is a picture from my official workshop manual that shows them (ignore the fact that it is butchered by an Oxyacetylene torch):



I also found other restoration threads that showed the mystery holes in the same place, so I was reassured that no action was required.

Masked up the holes and then blasted it all clean using the blasting drape to contain the mess:

 Now to get this into paint before it rapidly rusts over again...
